Snacks Packing Machines

Snacks Packing machines are working under Principle of Load Cell Based.

    Machine Working under three steps:

  •  Weigihing - Products - Required Weight of Product has to filling in Box.
  •  Filling - Products - Required Weight of products has to fill in Pouch.
  •  Sealing - Products - Filled Required Weight Pouch has to seal.
  •  Special Featurers - Nitrogen Flushing.

Snacks Packaging Machines (Cup Filler )


Specifications

We are amongst the prominent manufacturers of Automatic Snacks Packing Machine (Cup Filler )Type. These Machines are manufactured using quality assured components sourced from reliable and certified vendors of the industry. They are acclaimed for their sturdiness, dimensional accuracy, and seamless performance. These products are available in different grades and can be customized as per the preference.



BrandExcell Packs
Capacity1500 - 2000 Packs /hour
Power1HP /Single Phase
Voltage220V
Model Name/NumberEPMPFFSS10
Packaging ApplicationAll Kind of Snacks
Filler TypeCup Filler
Frequency50Hz
Power Consumption4Kw /Hour
Packaging MaterialAll Laminated Films

    PRODUCTS VIDEO

    Additional Information:

    • Item Code: EPMPFFSS10
    • Production Capacity: 1500 - 2000 Packs /hour
    • Delivery Time: 20 Working days

    Features:

    Applications:

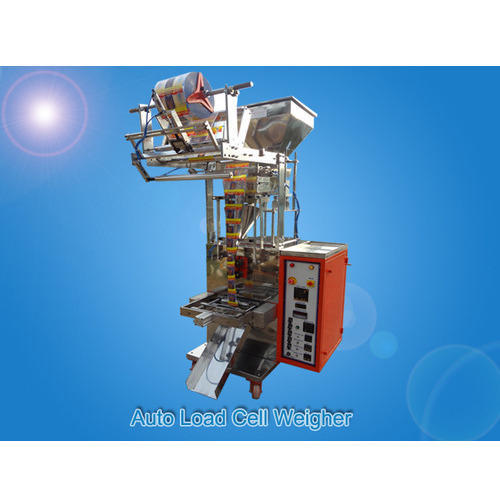

Snacks Packing Machine (Single Head )


Specifications

Our company has gained market recognition in the manufacture of Auto Load Cell Based Single Head Machine. Our Auto Load Cell Based Single Head Machine have amazing quality and great durability. These machines are in huge demand among our customers since they are manufactured from supreme quality raw material. These machines give good performance for a long time and consume less power.

  • Head: Single
  • Type: Pneumatic Machine
  • Range: 10gm to 200gm and 50gm to 1000gms
  • Speed: 5 to 8 Packets/ Min (Depends on Product)
  • Electrical: 1HP, Single Phase, 220v
  • Heater: 1700Kw
  • Sealing Type: Center sealing
  • Paper size: Length - 40 to 450mm, Width : 50 to 600mm
  • Air: 6° air pressure required


BrandExcell Packs
Automation GradeAutomatic
Voltage220V
PhaseSingle Phase
Model Name/NumberEPmSHWF8
Packaging ApplicationSnacks,Namkeens,Chips,Savouries
Machine Power1-2 HP
Filler TypeLoad Cell Based
Pouch Length4
Packaging Speed5 to 8 Packs /Min
Pouch StylesCenter Seal
Capacity (pouch per hour)500-1000
Pouch Capacity10-50 grams,50-200 grams,200-400 grams,400-600 grams,600-1000 grams

    PRODUCTS VIDEO

    Additional Information:

    • Item Code: EPMSHWF8
    • Production Capacity: 300 - 500 Packs /Hr
    • Delivery Time: 25 to 30 Working Days
    • Packaging Details: All Laminated Films

    Features:

    Applications:

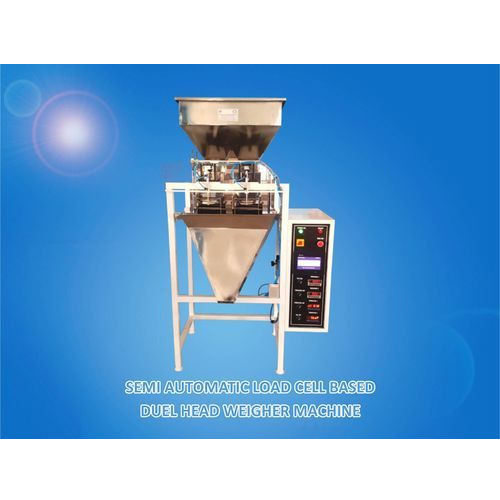

Snacks Filling Machine


Specifications

We are a trusted organization of this domain in offering a wide gamut of Semi Automatic Load Cell Based Weigh Filler Machine to our valued customers. Our offered machine are used to pack food grains, granules, seed, nuts, popcorn, vegetables, sugar, cheese balls, and grocery items like grains, camphor, pulses and also for candies and dry fruits. In addition to this, these machines that we offer have high damage resistance and long service life.

  • Head: Dual head
  • Type: Pneumatic Machine
  • Range: 10gm to 1000gms
  • Speed: 10 to 16 Packets/ Min (Depends on Product)
  • Electrical: Single Phase, 220v
  • Operating System: PLC Control System
  • Mode: Auto / Manual ( By Foot Switch )
  • Air: 6° air pressure required


PhaseSingle Phase
Model Name/NumberEPMSWF16
Capacity600 - 1000 Packs /Hr
Machine TypeSemi-Automatic
Machine Power0-1 HP
Packaging ApplicationSnacks, Namkeens, Chips, Savouries
Filler TypeWeigh Filler
Pouch Length>12"
Power Consumption4KW
BrandExcell

    PRODUCTS VIDEO

    Additional Information:

    • Item Code: EPMSWF16
    • Production Capacity: 600 - 1200 Packs / Hr
    • Delivery Time: 25 to 30 Working Days
    • Packaging Details: All Laminated or Non-Lamited Films

    Features:

    • Sturdy construction
    • Attractive function
    • Super performance
    • Lightweight

    Applications:

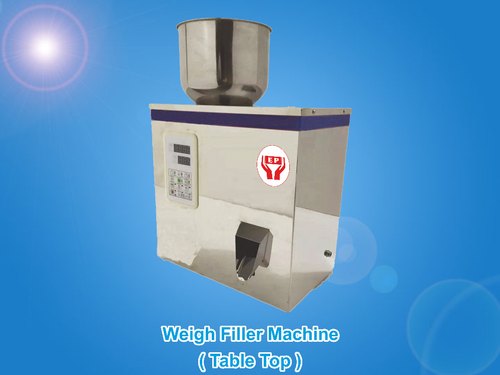

Snacks Packing Machine (Table Top )


Specifications

Table Top Weigh FIller Machine is used to Weighing and Filling all kind Granules, Pulses, Seeds, Dhal Items, Grains even it works with Powders also. Our Technical Team Manufactured this machine very Econamy Rate and It occupies less Space.


Especially for womens easy and very safety equipment to operate. Even for unskilled Persons too run ths machine.




Machine TypeSemi-Automatic
Capacity5 - 15 Packs / Min
Voltage220V / Single Phase / 16Amps
Packing MaterialAny Packing Material Lamination,PP,LD,HM etc.
Frequency60Hz
Speed5 - 15 Packs / Min
PhaseSinlgle Phase
Weight80Kgs
Driven TypeMicro Processor
Filling Range10gm - 1000gm.
Accuracy Of Filling+ or - 1gms
Automation GradeSemi-Automatic
Model NumberEPM /TT / WF 1000
BrandExcell Packs
I deal inNew Only

    PRODUCTS VIDEO

    Additional Information:

    • Item Code: TTWF1000
    • Production Capacity: 5 to 15 Packs / Min
    • Delivery Time: 20 Working Days
    • Packaging Details: Wooden Case

    Features:

    Applications:


Snacks Packing Machine (Double Head )


Specifications

We are amongst the prominent manufacturers of Auto Load Cell Based Dual Head Machine. These Machines are manufactured using quality assured components sourced from reliable and certified vendors of the industry. They are acclaimed for their sturdiness, dimensional accuracy, and seamless performance. These products are available in different grades and can be customized as per the preference.

  • Head: Dual head
  • Type: Pneumatic Machine
  • Range: 10gm to 200gm and 50gm to 1000gms
  • Speed: 10 to 16 Packets/ Min (Depends on Product)
  • Electrical: 1HP, Single Phase, 220v
  • Heater: 1.7KW
  • Sealing Type: Center sealing
  • Paper size : Length - 40 to 450mm, Width : 50 to 600mm
  • Air: 6° air pressure required


Packaging MaterialAll Laminated Films
Filing TypeWeigh Filler
Sealing TypeCanter Seal
Capacity8 to 16 Packs /Min
BrandExcell Packs
Power2KW
Usage/ApplicationSnacks
Machine TypeFully Automatic
Voltage220V
MaterialStainless Steel
Pouch Capacity10gm -1000gms
Automatic GradeAutomatic
Filler TypeWeigh Filler
Packaging TypeCanter Seal -Pillow Pack
ModelALBW
Brand/MakeExcell
LayoutVertical

    PRODUCTS VIDEO

    Additional Information:

    • Item Code: EPMSDHWF16
    • Production Capacity: 600 - 1000 Packs/ Hr
    • Delivery Time: 30 Working Days
    • Packaging Details: All Laminated Films

    Features:

    Applications:

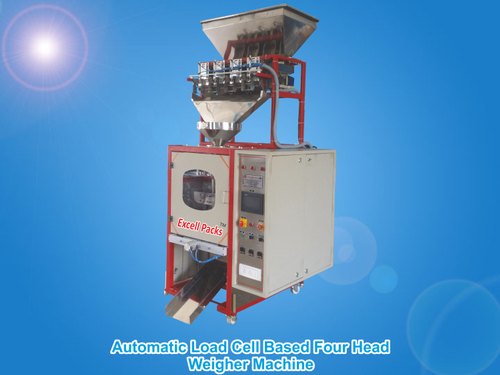

Namkeen Packing Machine (Four Head )


Specifications

The heart of the machine is in house developed load cell based 32 bit advanced controller. The controller has user friendly operator interface where one can set different weights as per different batches and even different products.

Since the controller design is proprietary, sensograph can offer customized solutions to meet any weighing requirement.

Filing TypeWeigh Filler
BrandExcell Packs
Sealing TypePneumatic Sealing
Model Name/NumberEP / FH / WF / 100
Automation GradeAutomatic
Usage/ApplicationAll kind of snacks
MaterialContact Parts are SS
Capacity2000-3000 pouch per hour
Voltage440v
PhaseThree Phase

    PRODUCTS VIDEO

    Additional Information:

    • Item Code: EP100
    • Production Capacity: 20 - 30 Packs /Min
    • Delivery Time: 30 Working Days
    • Packaging Details: All laminated Films

    Features:

    Applications:


Nuts packing machine


Specifications

Machine                      : Collar Type

Application                : Nuts, Dry fruits

Heads                          : Four Head

Sealing Type           : Center sealing.

Range                  : 10gm - 200 gm.

Packing Size        : Film length 40-450 mm, Film width 50-600mm

Speed                   : 25-30/Min (Depending on weight and type of product)

Packing Material   : All types of heat-sealable laminations.

Electrical               : 3 ph/440V AC /50HZ

Motor                     : 2 hp Geared Motor

Heaters                  : 2000 W

Air                          : 6?Air Pressure required

Required                : 6KVA Servo Stabilizer

Size                        : 5 x 6 x 10 in Foot


The heart of the machine is in house developed load cell-based 32-bit advanced controller. The controller has user-friendly operator interface where one can set different weights as per different batches and even different products.

Since the controller design is proprietary, sensograph can offer customized solutions to meet any weighing requirement.


    PRODUCTS VIDEO

    Additional Information:

    Features:


    Applications:
