Wrapping Machine

We are a paramount organization that is engaged in manufacturing, supplying and exporting a broad spectrum ofWrapping Machines. Manufactured using excellent quality material, our range consists of a stainless steel finned tubular heater. Also, our range comprises a heavy duty blower which provides sufficient amount of heat transfer. Our offered product-line is available with finest quality insulating material like calcium silicate or asbestos sheets on panels of machine. All our products are over backed with heat resistant power coating on mild steel fabrication.

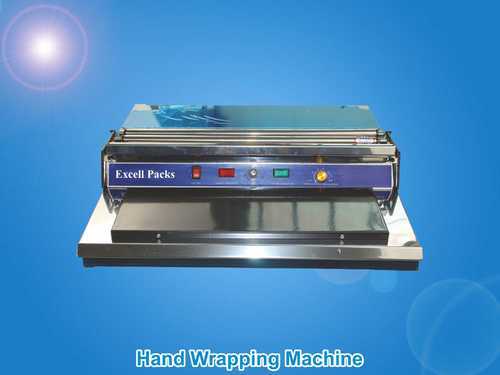

Hand Wrapping Machine


Specifications

We have gathered a huge customer base in this domain by presenting a comprehensive range of HandWrapping Machine. This stylish machine is manufactured using quality materials and advanced technology. Our professionals manufacture all kinds of machine according to the trending demands and clients needs

Technical Specifications

Wrap Type Manual
Electrical 220V / 50Hz
Heater 500Watts
Sealing Type Impulse
Sealing Width 450mm

BrandExcell Packs
Capacity (Wrap/Minute)8 - 10 Pcs / Min
ConditionNew
DesignExcell Packs
Packaging MaterialPlastic
Sealing And CuttingBy Using Heater Pad
Model No.EPM / HW - 450
MaterialStainless Steel
Automation GradeManual
Power(Watt)500Watts

    PRODUCTS VIDEO

    Additional Information:

    Features:

    Applications:

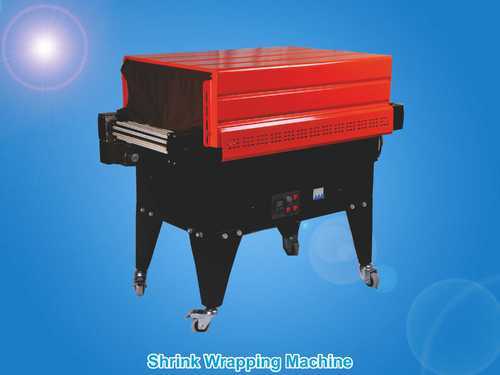

Shrink Wrapping Machine


Specifications

We have gained immense domain knowledge of manufacturing, supplying, exporting, and distributing a wide assortment of Shrink Tunnel Packaging Machines that includesShrink Tunnel. These are designed for precise control of tunnel temperature and offers ease of operations. These machines also facilitate varying tunnel time. We use the finest grades of basic components to manufacture these machines and offer at reasonable rates.

Technical Specifications

Tunnel Range
1. 200 x 150mm (8" x 6" )
2. 400 x 200mm (16" x 8" )
3. 400 x 250mm (16" x 10" )
4. 525x 250mm (18" x 10" )
5.525x 250mm (18" x 14" )

Dimension(millimetre)Customized
Packing Speed(pcs/hour)300 - 800 Packs
Voltage(Volt)220V / 440V
Sealing TemperatureAs per Shrink Film
Driven TypeYes
FilmPOF, PVC, PP, POP
ConditionNew
Packaging MaterialPlastic
PhaseSingle / 3 Phase
Capacity5 to 10 Packs / Min
Automation GradeSemi-Automatic, Automatic
Power(Watt)5Kw - 10Kw
ColorStandard

    PRODUCTS VIDEO

    Additional Information:

    Features:

    • Impeccable finish
    • Precision engineered

    Applications:

    • This shrink wrapping machine is widely applied for outer shrink packing of various products, such as foodstuff, beverage, pharmacy, video disc, hardware, cosmetics, book, toy and electronic products etc.
    • To shrink wrapping the combined products in the supermarket for sales promotion, such as foodstuff, beverage, cosmetics, presswork, and toy etc.
    • To use in place where there is restriction on space, such as supermarket, monopolization shop, office and some laboratory etc

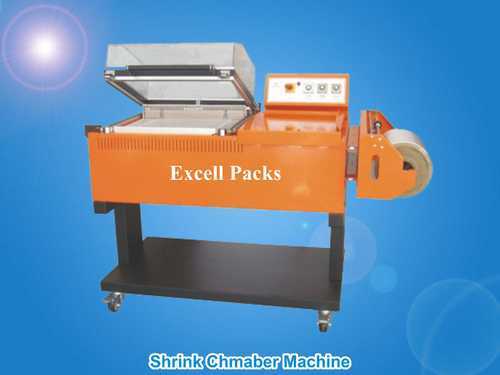

Shrink Chamber Machine


Specifications

Our vast industry knowledge and in-depth technical expertise in manufacturing, exporting, supplying, and distributing Packaging Machines have enabled us to offerShrink Chamber. It is designed to perform sealing and shrinking in one single stage and has the facility of temperature adjustment. It ensures easy working with its adjustable platform and facilitates visibility of shrinking process. It can be availed at reasonable rates.



Voltage ( V/Hz)220V / 50Hz
Dimension(LxWxH)(mm)550mm x 440mm x 200mm
MaterialMild Steel
ConditionNew
Packaging MaterialPlastic
BrandExcell Packs
Power (kw)1Kw
Model No.EPM / SCM 100
Packing Speed (pcs/h)3 - 5 Packs / Min
Automation GradeSemi-Automatic

    PRODUCTS VIDEO

    Additional Information:

    Features:

    • Low energy consumption
    • Sturdy structure
    • Sealing & Shrinking in one operation.
    • Thermostatically controlled temp.
    • Adjustable working platform.
    • Reduced Electrical consumption
    • Easily visible operation

    Applications:

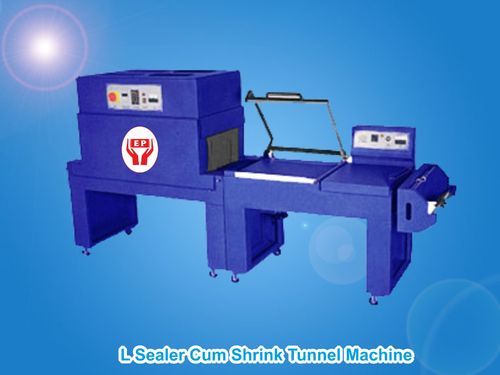

L Sealer Cum Shrink Tunnel Machine


Specifications

L sealer is basic sealing machine to wrap and seal the product to be shrink wrapped with shrink film which is in folded roll form. The product to be wrapped in inserted into the shrink film and sealer in the L seal area and shrinking of the film take place in Shrink Tunnel


Technical Specifications:

L Sealer - LS 2015


Sealing Area: 200 (W)X 150 (H)mm

Sealing Type: impulse type blade sealing

Sealing Watts: 1 K.W

Power: 230V, 15 Amps, 50 Hz


Shrink Tunnel - SW 4525


Tunnel Opening : 450mm (W) X 250mm (H)

Gear Box with Motor : 250 Watts

Power consumption : 6 K.W

Blower Capacity : 200 Watts,

High velocity blower

M.O.C : In M.S duly powder coated

Power supply : AC 440 V, 50 Hz, 3 Phase


Control panel will be provided on the machine

Voltage (V)440V
TypeSemi Automatic
Air Pressure Of WorkingNo
Speed (m per min)8- 10 / Min
Automatic GradeSemi-Automatic
Frequency (Hz)50Hz
ConditionNew
PhaseSingle / 3 Phase
Max. Packing Dimension (mm)500 x 300mm
MaterialShrink Films
ApplicationWraaping
BodyMS
Max Sealing Cutting Size500 x 350mm
ModelEP / LSCST
BrandExcell Packs

    PRODUCTS VIDEO

    Additional Information:

    Features:

    Applications:

    Stationary, Books, Files, Magazine, Manual, EnvelopesXerox Paper, Gift Article, Greeting Card,Trophies,Toys & GamesComputer Consumable , Accessories, PCB, Electrical Components, Dry ell Battery Etc.Pharmaceuticals & Chemical Product Medical Equipments, Cosmetics, Household Articles Industrial, Engineering, Automobile Components Textile & Hardware Articles Multi Packs, Promotional Materials And More Fast Food, Confectionary, Beverages & Dairy Product

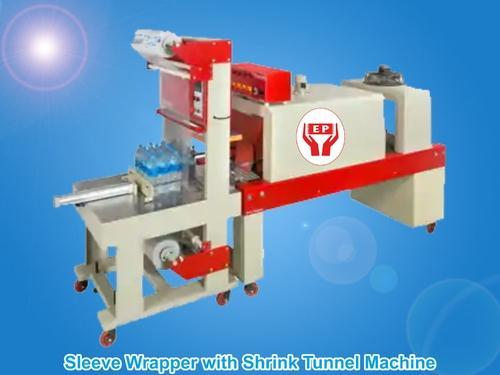

Sleeve Wrapper with Shrink Tunnel Machine


Specifications

Fostered with vast industry experience and knowledge of this domain, we are engaged in presenting Web Sealer Shrink Machine. This machine is used for shrink wrapping your products with PVC / LDPE Shrinkable film. Put the product in the bag manually and convey in shrink tunnel for finish packaging. This is the most popular and economical; combined with a wide range of application. With this machine, it is possible to adjust the size and do any type of wrapping. It is mounted on caster wheels to move it easily where in your plant.

Usage/ApplicationWrapping
FilmLD Shrink Film
Packaging MaterialPlastic
Automation GradeSemi-Automatic
Packing TypeCans, Cartons, Bottles
Voltage440V
Power5Hp
BrandExcell Packs

    PRODUCTS VIDEO

    Additional Information:

    • Production Capacity: 6 -8 Bundles / Min
    • Delivery Time: 30 Working Days

    Features:

    • Quick sealing
    • Better design
    • High reliability

    Applications:

Our Related Products

Pet Bottle Filling Machine

Spices Mixing Machines

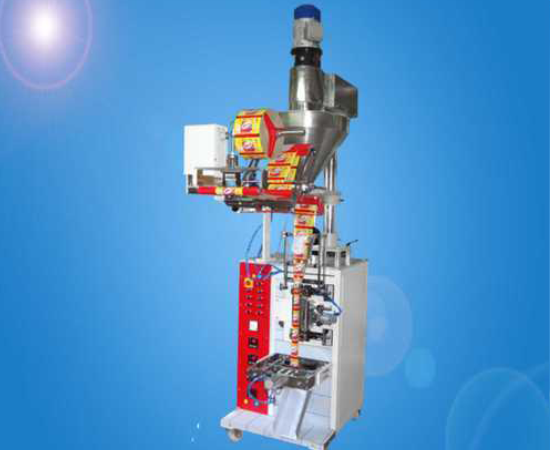

Automatic Powder Packing Machine

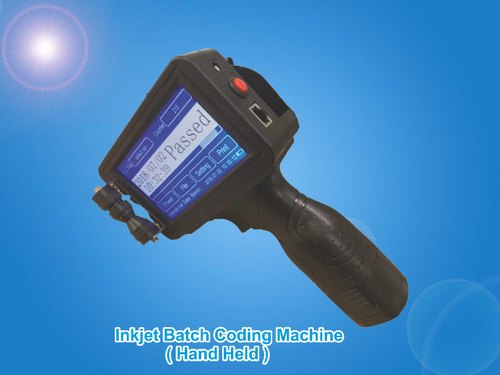

Inkjet Batch Coder (Manual)

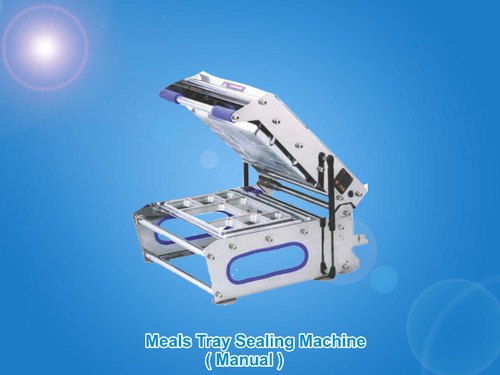

Meals Tray Sealing Machine

Flour Mill Machinery

Herbal Powder Packing Machine

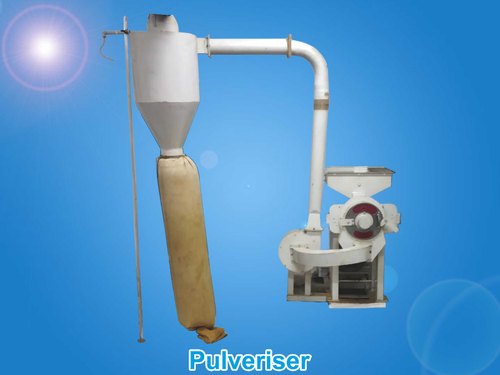

Pulverizer Machines

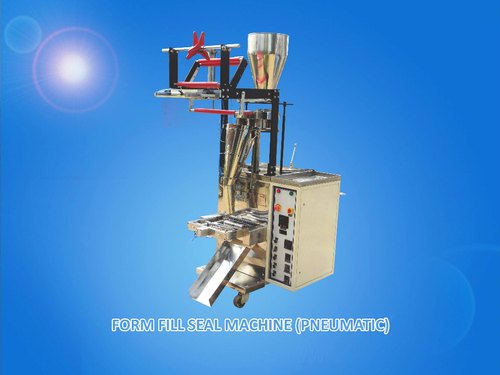

Form Fill Seal Machine (Mechanical )
